SideWall Conveyor Belt

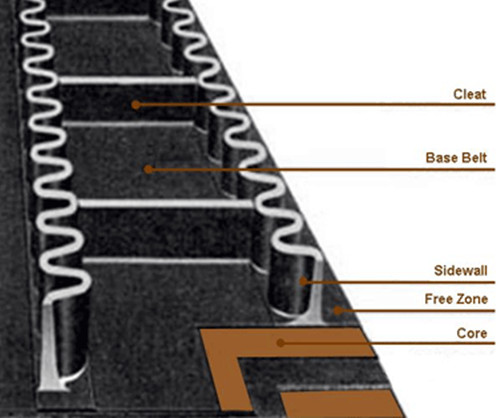

Side wall\Cleat and base belt can be purchased separately.
1)Application:
Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space and requirement, no transfer point, low maintenance and big capacity.
2)Composition:
It is based in the following main components:
(1) Cross-stabilized Base Belts(2) Sidewalls(3) Cleats
3)The Base Conveyor Belt:
The base conveyor belt is Cross Stabilized Base Belt which designed to bend efficiently in a longitudinal direction and has greater rigidity in a transverse direction by utilizing reinforced fabrics with monofilament the creates a fabric carcass of high tension
4)The sidewall:
Side wall specification:Height mm
60 80 100 120 140 160 200 240 300 400

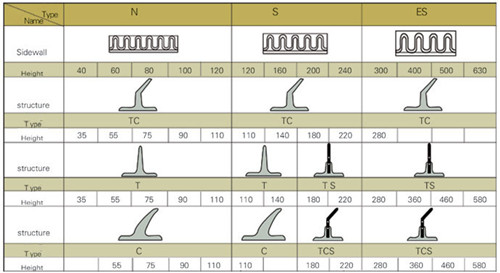

5)The cleat: Cleat types: T, TS, C, TC and TCS
|
Base Belt
Width B (mm)
|
Sidewall
Height H (mm)
|
Cleat
Height H1 (mm)
|
BF
(mm)
|
Br
(mm)
|
B
(mm)
|
|
300
|
40
|
35
|
25
|
180
|
35
|
|
60
|
55
|
50
|
120
|
40
|
|
80
|
75
|
|
400
|
60
|
55
|
50
|
180
|
60
|
|
80
|
75
|
|
100
|
90
|
|
500
|
80
|
75
|
50
|
250
|
75
|
|
100
|
90
|
|
120
|
110
|
|
650
|
100
|
90
|
50
|
350
|
100
|
|
120
|
110
|
|
160
|
140
|
75
|
300
|
|
800
|
120
|
110
|
50
|
460
|
120
|
|
160
|
140
|
75
|
410
|
|
200
|
180
|
|
1000
|
60
|
140
|
75
|
550
|
150
|
|
200
|
280
|
|
240
|
220
|
|
1200
|
160
|
140
|
75
|
690
|
180
|
|
200
|
180
|
|
240
|
220
|
|
300
|
280
|
105
|
630
|
|
1400
|
200
|
180
|
75
|
830
|
210
|
|
240
|
220
|
|
300
|
280
|
105
|
770
|
|
400
|
360
|
|
1600
|
200
|
180
|
75/105
|
970
|
240
|
|
240
|
220
|
|
300
|
280
|
75
|
910
|
|
400
|
360
|
|
1800
|
240
|
220
|
105
|
1110
|
270
|
|
300
|
280
|
125
|
1050
|
|
400
|
360
|
|
500
|
460
|
|
1010
|
