Steelcord conveyor belt
Main Applications : Coal Industry, Metallurgical Industry, Power Plants, Chemical Industry
.png)

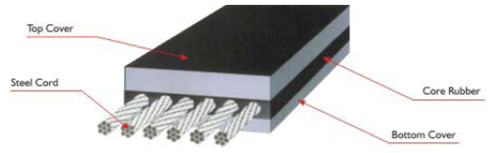

Belt reinforced with galvanized steel cord and core rubber with superior adhesive property.
|
Technical parameters：
|
|
Tensile body optional high-intensity, low-extension of galvanized steel cord,,core rubber adhesion with a rope, and fatigue-resistant, anti-aging, good elastic rubber, plastic covering selected high strength, wear-resistant, anti-aging rubber composition,High adhesion between rubber and steel cord,
|
|
Specifications Model：
|
Attention:We can produce all kinds of performance conveyor belt under DIN22131、AS1333、JISK6369 standards and so on...
|
Belt Strength /
Technical
Required Items
|
ST
630
|
ST
800
|
ST
1000
|
ST
1250
|
ST
1600
|
ST
2000
|
ST
2500
|
ST
3150
|
ST
3500
|
ST
4000
|
ST
4500
|
ST
5000
|
ST
5400
|
ST
6300
|
|
Longitudinal tensiIe
strength N/mm
|
630
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
3150
|
3500
|
4000
|
4500
|
5000
|
5400
|
6300
|
|
Max Dia. of Cord mm
|
3
|
3.5
|
4
|
4.5
|
5
|
6
|
7.5
|
8.1
|
8.6
|
8.9/9.1
|
9.7
|
10.9
|
11.3
|
12.3
|
|
Pitch of Cord mm
|
10
|
10
|
12
|
12
|
12
|
12
|
15
|
15
|
15
|
15/17
|
16
|
17
|
17
|
18
|
|
Top Cover Thickness mm
|
5
|
5
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
8
|
8
|
8.5
|
9
|
10
|
|
Bottom Cover Thickness mm
|
5
|
5
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
8
|
8
|
8.5
|
9
|
10
|
|
* Reference Belt Mass kg/m2
|
18
|
19.5
|
21.5
|
22.2
|
26.1
|
33.1
|
35.3
|
41.1
|
45
|
45/45
|
51
|
59
|
62
|
65
|
Also Available :

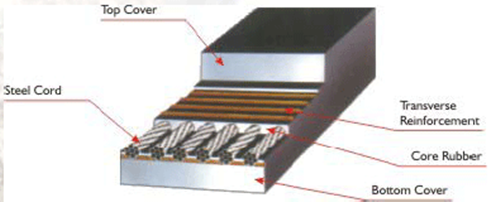

1) BELT with transverse reinforcement : Ideal for excellent tear resistance :
2) Tear resistant belts with embedded sensors.
