Cold resistant conveyor belt
Characteristics:
Cold resistant conveyor belt is popular for conveying materials outdoors in freezing areas. It is made by cotton canvas, nylon canvas or EP canvas, and its rubber cover is a blend of NR and BR , natural and butadiene rubber combinations as the cover rubber. which features high elasticity, great shock resistance, cold resistance etc. This conveyor belt can normally work at -40℃.
Feature:
fabric specs: EP80~EP630,NN80~NN630,CC56 T.C56
width: 400-2200mm
cover rubber: NR,BR,blended
properties: High elasticity,shock resistance,cold resistance etc
usage: Suitable for conveying materials outdoors in freezing area,cols storage etc.
temperature: -45-+75℃
Technical data:
|
Grade
|
Min. Tensile Strength (N/mm2)
|
Min. Elongation at Break (%)
|
Max. Abrasion Loss (mm3)
|
Cold resistant coefficient at elongate ≥
C1(-45’ C) C2(-60’ C)
|
Aging test
(-70°C, 168 h)Change rate of tensile strength and breaking elongation (%)
|
Application Areas:
|
|
H (Laceration resistant)
|
24
|
450%
|
120
|
0.3 0.2
|
±25
|

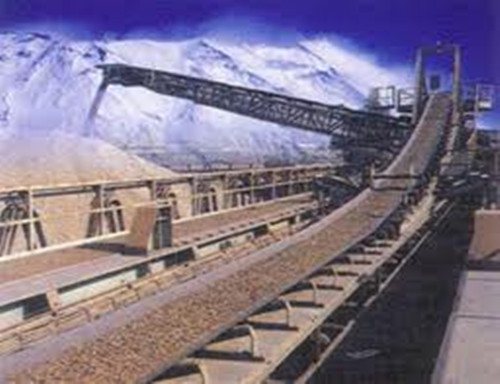

Ideally suited to applications in the open air of cold environments or freezer stores / warehouses.
|
|
D (Anti - Abrasion resistant)
|
18
|
400%
|
100
|
|
±25
|
|
|
L(Ordinary)
|
15
|
350%
|
200
|
|
±25
|
|
|
Note: C1: temperature condition is -45°C~+50°C; C2: temperature condition is -60°C~+50°C
|
