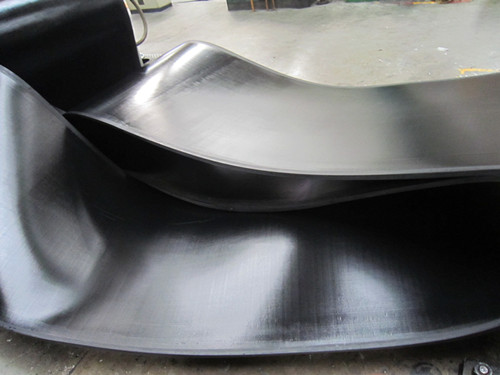

NN CONVEYOR BELT
Characteristics:The nylon canvas is woven by nylon fibers both in warp and in weft, it is the most widely used fabric in rubber industry,and its outstanding merits are thin belt body, high tensile strength, good anti-shock,good performance,high adhesion between plies,splendid flexibility and long working life.

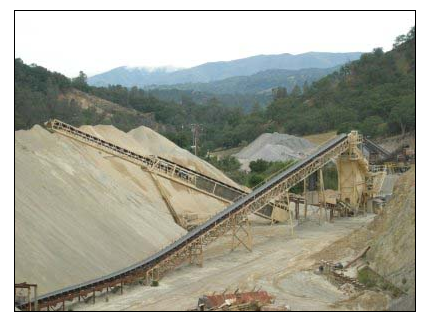

USAGES: Nylon conveyor belts are suitable for medium, long-distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry,ports and so on.
Standard：We can supply belts according to international standard, Such as GB/T 7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
|
|
|
|
Specification and techical data of nylon conveyor belt:
|
|
Fabric type
|
Fabricspecs
|
Ply thickness
|
(N/mm) single fabric strength
|
(mm)Cover thickness
|
Widtth mm
|
Length m
|
|
|
|
(mm/P)
|
|
Upper
|
Lower
|
|
|
|
Nylon (NN)
|
NN-100
|
0.7
|
100
|
1.5-8
|
1-4.5
|
300-2200
|
20-300
|
|
NN-125
|
0.75
|
125
|
|
NN-150
|
0.8
|
150
|
|
NN-200
|
0.9
|
200
|
|
NN-250
|
1.1
|
250
|
|
NN-300
|
1.25
|
300
|
|
NN-350
|
1.35
|
350
|
|
NN-400
|
1.7
|
400
|
|
NN-500
|
1.8
|
500
|
|
Conver grade
|
Tensile strength
≥
|
Elongation
≥
|
Abrasion
≤
|
Change Rate of tensile strengh
and elong after aging
|
|
|
Mpa
|
Kgf/cm2
|
%
|
mm3
|
%
|
|
Strong designated-type working conditions(H)
|
24
|
240
|
450
|
120
|
-25～+25
|
|
Strong wear working conditions (D)
|
18
|
180
|
400
|
100
|
-25～+25
|
|
General working conditions Light(L)
|
15
|
150
|
350
|
200
|
-25～+25
|
